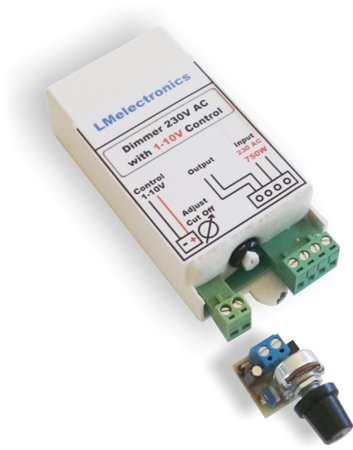

Dimmer 230V/750W with 1-10V control LM

Dimmer for Electromagnetic and Electric ΝΕΟΝ Transformers. Input Voltage: 230V. Output Voltage: 230V. Maximum power: 750W. Waterproof ΙΡ65. The brightness is adjusted by applying a 1-10V signal to the Dimmer or by using the special manual dimmer-part provided. The distance between the Dimmer and the manual dimmer-part can be up to 50m and the connection cable can be telephone or UTP. Dimensions: 13cmx5,5cmx3cm. Weight: 350gr. Designed and manufactored in Greece by LM Electronics.

Manufacturer: LMelectronics

Availability: In stock

SKU: 2-14-019

40.00€ excl tax

Brightness adjustment is achieved in 2 ways:

a) By applying a 1-10V DC control signal to its special socket (control terminal) or

b) By using the special potentiometer provided in the price. The potentiometer can be connected with a simple speaker cable or telephone, at a distance of up to 30m from the Dimmer.

Dimmer 1-10V is compatible with all lighting control consoles that operate with the 0-10V protocol.
In neon light applications it can be used as an alternative to replace the special power supplies of Electronica Per Luce, with simple power supplies of any brand, used for switching lighting colors with the ADELIS system.

Products specifications

Attribute name	Attribute value
Manufacturer	LMelectronics Greece
